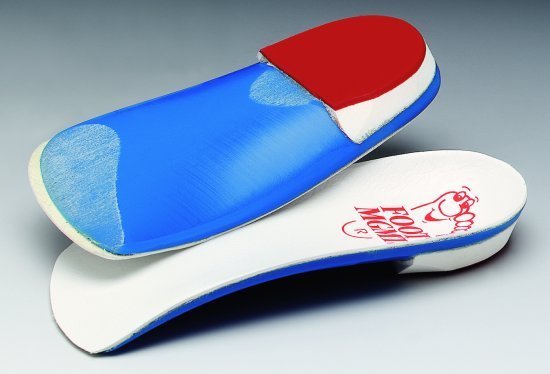

Designed for the patient where longitudinal arch support and maximum biomechanical control are desired (pes planus/pronator). A semi-rigid thermoplastic material is used to manufacture the shell, with a shock absorbing EVA heel post added extrinsically. Also available as a neutral shell (intrinsic heel post). Standard length is to the met heads. Available in street and sport cut. The Red, White, and Blue is one of our most popular orthotics.
Blue Neutral Shell
Designed for the patient where longitudinal arch support and bio-mechanical control are desired. A semi-rigid thermoplastic is intrinsically posted to neutral alleviating the bulk of a extrinsic heel post. Available in street and sport cuts. Standard length is to the met heads.
The latest technology allows engineered nylon to be blended with carbon graphite. This blend creates a lightweight shell that offers functional control with less bulk. Performance Graphite comes in three rigidities: semi-Flexible, semi-rigid, and rigid. This orthotic is available in med head, sulcus, and full length with widths to fit cleats, athletic, street and dress shoes. Comes standard with an intrinsically posted neutral shell with black naugagyde on the street cut and multi EVA on the sport cut. Extrinsic rearfoot post may be added upon request.
This device incorporates the qualities of our standard Shocker orthotic however it offers more flexibly and shock absorption but still keeps that needed bio-mechanical control and allows the foot to be a mobile adapter. This new device is comprised of a 2mm flexible shell and our own shock absorbing base material, with soft non-skid on the bottom and a durable perforated EVA top cover to keep the device breathable. Designed for patients under 200lbs. Standard length is to the met heads.

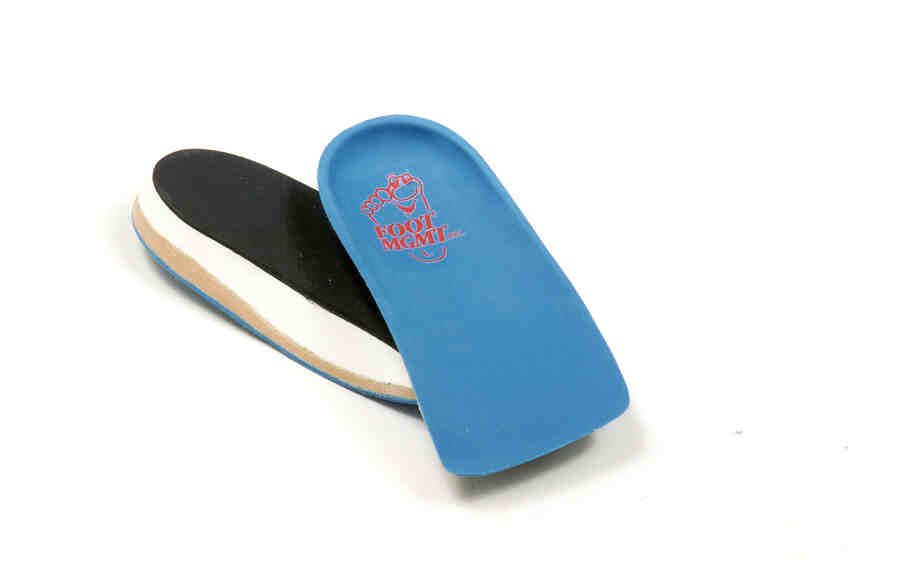

The Shocker is one of our most popular orthotics. It is a hybrid orthotic having both rigid and semi rigid characteristics. Designed for patients under 200lbs where longitudinal arch support and biomechanical control are desired as well as shock absorption. 35 durometer Shock absorbing EVA and high density foam are laminated to a flexible 2mm thermoplastic shell. Standard length is to the metatarsal heads.
A modified version of the Shocker. The Shocker Plus is designed for people over 200lbs and uses a 2mm shell with a denser (55 durometer) EVA as the arch fill layer, and has 15 durometer cushion material under the arch fill. This high density foam added to the arch area provides a "heftier" Shocker. You may request a 3mm shell for larger patients.
A modified version of the Red/White/Blue for patients 250lbs or larger A high density foam (55 durometer) bottom fill is added distal to the rearfoot post to add support and stability to the shell and it uses a 15 durometer arch fill for cushion. The shell comes standard 4mm, however you may request a 5mm shell. Standard length is to the metatarsal heads.

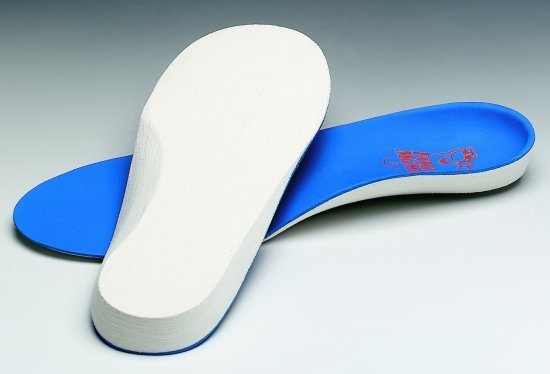

Ortho Arch ®
These orthotics are computer generated from your cast of the patient, and are designed to fit easily into the shoe. Manufactured from EVA, a durable, long lasting material proven in the shoe industry. These devices tend to be less bulky, and lighter in weight than other semi-rigid devices. The Ortho Arch aids in shock absorption, pressure relief, and biomechanical control, while remaining flexible and allowing the foot to be a mobile adapter. A great longitudinal arch support that can be used for pes cavus or a rigid foot. This orthotic can tolerate all weather conditions. They are standard full length devices, but can readily be cut to the toe crest or metatarsal heads. A tough orthotic for sports.
Manufactured from a thin, rigid, thermoplastic, the appliance is cut narrow and has a shallow heel cup. It is a streamlined appliance which will offer support and control. Standard length is to the met heads. Forefoot and rearfoot accommodations can readily be made. Great for soccer cleats. Available in street and sport cuts.
Manufactured from a thin, rigid, thermoplastic, the appliance is cut narrow and has a shallow heel cup. It is a streamlined appliance which will offer support and control Standard length is to the met heads. This device comes with extrinsic rearfoot posting. Available in street and sport cut.
Children's / UCBL
Designed to maintain the child's foot in an optimal biomechanical position during their formative years. Manufactured from a flexible thermoplastic, these orthotics provide comfortable control. They are cut with a deep heel cup and high medial and lateral borders and are intrinsically posted. They can be used for adult patients as well. Also available in Gait Plates to promote in-toeing or out-toeing during gait.

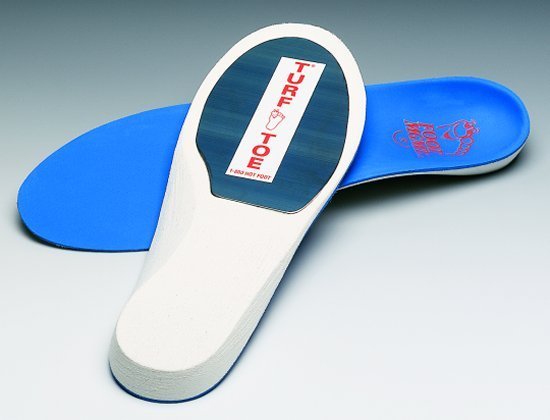

Turf Toe ® (Sport)
Designed to control dorsiflexion at the MP Joints and to relieve pressure from the head of the first MP. A spring steel forefoot extension is laminated to the Ortho-Arch II orthotic, with a built in pressure relief area, to produce a lightweight but protective appliance. Orthotic comes full length only, with the option of a half or full plate. Also available as a post operative appliance to limit forefoot dorsiflexion in a street or healing shoe.
Biomechanical control, low profile, longitudinal arch support, made with rigid, thin flexible thermoplastic material. Standard length is to the metatarsal heads.

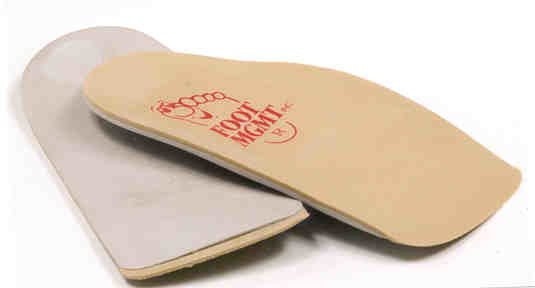

Manufactured from a thin fiberglass shell, the appliance is cut narrow and has a shallow heel cup. It is a streamlined appliance, which will offer support and control. Standard length is to the metatarsal heads. Forefoot and rearfoot accommodations can readily be added. A popular orthotic for dress shoes.

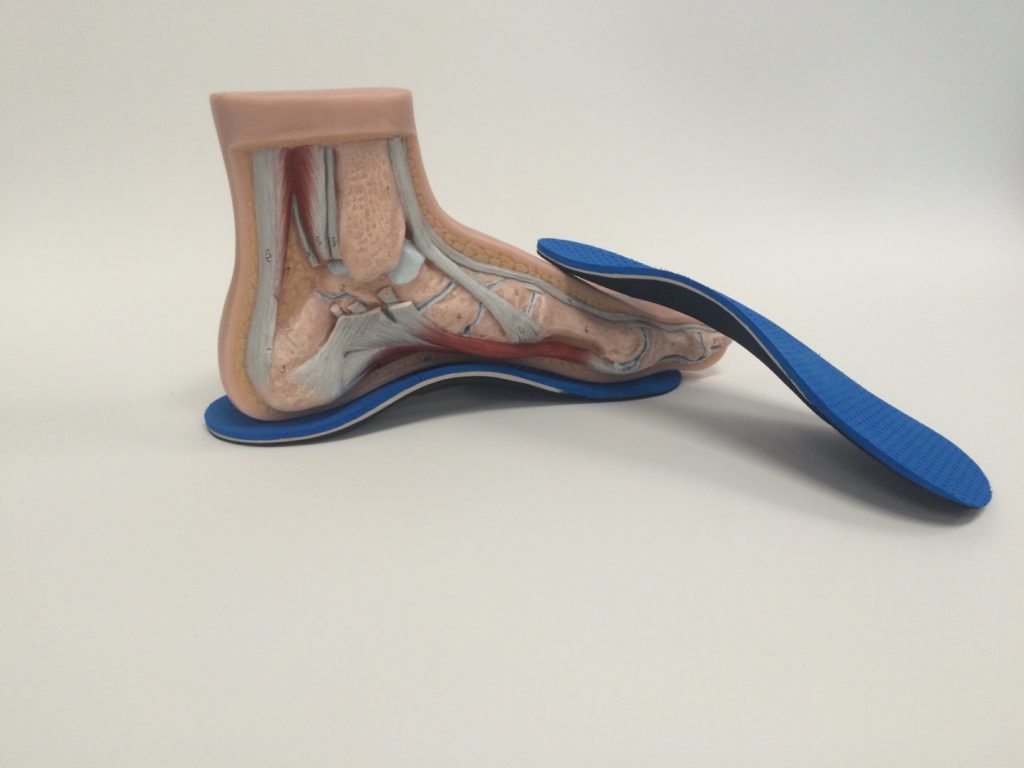

This device is made of an extruded nylon material with a durable perforated EVA top cover to keep the device breathable while still offering support and control and has a soft non-skid material on the bottom of the device. This Lo-Pro Orthotic is ideal for low volume shoes, like soccer cleats, track spikes, dress shoes and even street shoes where space is at a premium. The streamlined nature of this device makes it great for going from cleats to dress shoes for that patient/athlete who has to go from the field straight to the boardroom!
Custom Sandal Orthotics
Custom made orthotics to fit perfectly into your sandals. Simply send in your patients sandals to our lab and choose from any of or semi-rigid orthotics for a perfect fit.
Designed to provide moderate levels of biomechanical control and high levels of shock absorption for the high impact athlete. It is manufactured from a high density foam (cellular urethane). This orthotic can tolerate all types of weather conditions.
Photo of Walker Designed for the patient in which high levels of cushioning are desired as well as a degree of support and control. Ideal for diabetic patients.
Photo of Soft Designed for the arthritic patient, this model provides the highest levels of cushioning.
